This class is used for convenient multi-column Document Layouting More...

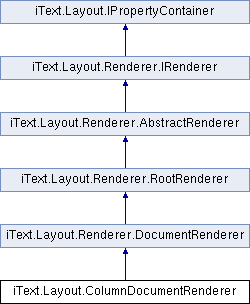

Inheritance diagram for iText.Layout.ColumnDocumentRenderer:

Public Member Functions
	ColumnDocumentRenderer (Document document, Rectangle[] columns)
	Creates a ColumnDocumentRenderer. More...

	ColumnDocumentRenderer (Document document, bool immediateFlush, Rectangle[] columns)
	Creates a ColumnDocumentRenderer whose elements need not be flushed immediately. More...

virtual int	GetNextAreaNumber ()
	Gets the array index of the next area that will be written on after the current one is full (overflowed). More...

override IRenderer	GetNextRenderer ()
	Gets a new instance of this class to be used as a next renderer, after this renderer is used, if Layout(iText.Layout.Layout.LayoutContext) is called more than once. More...

Public Member Functions inherited from iText.Layout.Renderer.DocumentRenderer
	DocumentRenderer (Document document)

	DocumentRenderer (Document document, bool immediateFlush)

override LayoutArea	GetOccupiedArea ()
	Gets the resultant occupied area after the last call to the Layout(iText.Layout.Layout.LayoutContext) method. More...

override IRenderer	GetNextRenderer ()
	For DocumentRenderer , this has a meaning of the renderer that will be used for relayout. More...

Public Member Functions inherited from iText.Layout.Renderer.RootRenderer
override void	AddChild (IRenderer renderer)
	Adds a child to the current renderer More...

virtual void	Flush ()
	Draws (flushes) the content. More...

virtual void	Close ()
	This method correctly closes the RootRenderer instance. There might be hanging elements, like in case of iText.Layout.Properties.Property.KEEP_WITH_NEXT is set to true and when no consequent element has been added. This method addresses such situations. More...

override LayoutResult	Layout (LayoutContext layoutContext)
	This method simulates positioning of the renderer, including all of its children, and returns the iText.Layout.Layout.LayoutResult , representing the layout result, including occupied area, status, i.e. if there was enough place to fit the renderer subtree, etc. iText.Layout.Layout.LayoutResult can be extended to return custom layout results for custom elements, e.g. TextRenderer uses iText.Layout.Layout.TextLayoutResult as its result. This method can be called standalone to learn how much area the renderer subtree needs, or can be called before Draw(DrawContext) , to prepare the renderer to be flushed to the output stream. More...

virtual LayoutArea	GetCurrentArea ()

Public Member Functions inherited from iText.Layout.Renderer.AbstractRenderer
virtual IPropertyContainer	GetModelElement ()
	Gets the model element associated with this renderer. More...

virtual IList< IRenderer >	GetChildRenderers ()
	Gets the child IRenderer s. More...

virtual bool	HasProperty (int property)
	Checks if this entity has the specified property. More...

virtual bool	HasOwnProperty (int property)
	Checks if this entity has the specified property, i.e. More...

virtual bool	HasOwnOrModelProperty (int property)
	Checks if this renderer or its model element have the specified property, i.e. More...

virtual void	DeleteOwnProperty (int property)
	Deletes the own property of this entity. More...

virtual void	DeleteProperty (int property)
	Deletes property from this very renderer, or in case the property is specified on its model element, the property of the model element is deleted More...

virtual T1	GetProperty< T1 > (int key)
	Gets the property from this entity. More...

virtual T1	GetOwnProperty< T1 > (int property)
	Gets own property from this entity. More...

virtual T1	GetProperty< T1 > (int property, T1 defaultValue)
	Gets a property from this entity or one of its hierarchical parents. More...

virtual void	SetProperty (int property, Object value)
	Sets a property for this entity. More...

virtual T1	GetDefaultProperty< T1 > (int property)
	Gets the default property from this entity. More...

virtual PdfFont	GetPropertyAsFont (int property)
	Returns a property with a certain key, as a font object. More...

virtual Color	GetPropertyAsColor (int property)
	Returns a property with a certain key, as a color. More...

virtual TransparentColor	GetPropertyAsTransparentColor (int property)
	Returns a property with a certain key, as a iText.Layout.Properties.TransparentColor More...

virtual ? float	GetPropertyAsFloat (int property)
	Returns a property with a certain key, as a floating point value. More...

virtual ? float	GetPropertyAsFloat (int property, float? defaultValue)
	Returns a property with a certain key, as a floating point value. More...

virtual ? bool	GetPropertyAsBoolean (int property)
	Returns a property with a certain key, as a boolean value. More...

virtual UnitValue	GetPropertyAsUnitValue (int property)
	Returns a property with a certain key, as a unit value. More...

virtual ? int	GetPropertyAsInteger (int property)
	Returns a property with a certain key, as an integer value. More...

override String	ToString ()
	Returns a string representation of the renderer. More...

virtual void	Draw (DrawContext drawContext)
	Flushes the renderer subtree contents, i.e. More...

virtual void	DrawBackground (DrawContext drawContext)
	Draws a background layer if it is defined by a key iText.Layout.Properties.Property.BACKGROUND in either the layout element or this IRenderer itself. More...

virtual void	DrawChildren (DrawContext drawContext)
	Performs the drawing operation for all children of this renderer. More...

virtual void	DrawBorder (DrawContext drawContext)
	Performs the drawing operation for the border of this renderer, if defined by any of the iText.Layout.Properties.Property.BORDER values in either the layout element or this IRenderer itself. More...

virtual bool	IsFlushed ()
	Indicates whether this renderer is flushed or not, i.e. More...

virtual IRenderer	SetParent (IRenderer parent)
	Explicitly sets this object as the child of another IRenderer in the renderer hierarchy. Some implementations also use this method internally to create a consistent hierarchy tree. More...

virtual IRenderer	GetParent ()
	Gets the parent IRenderer . More...

virtual void	Move (float dxRight, float dyUp)
	Moves the renderer subtree by the specified offset. More...

virtual IList< Rectangle >	InitElementAreas (LayoutArea area)
	Gets all rectangles that this IRenderer can draw upon in the given area. More...

virtual Rectangle	GetOccupiedAreaBBox ()
	Gets the bounding box that contains all content written to the DrawContext by this IRenderer More...

virtual Rectangle	GetBorderAreaBBox ()
	Gets the border box of a renderer. More...

virtual Rectangle	GetInnerAreaBBox ()

virtual Rectangle	ApplyMargins (Rectangle rect, bool reverse)
	Applies margins of the renderer on the given rectangle More...

virtual Rectangle	ApplyBorderBox (Rectangle rect, bool reverse)
	Applies the border box of the renderer on the given rectangle If the border of a certain side is null, the side will remain as it was. More...

virtual Rectangle	ApplyPaddings (Rectangle rect, bool reverse)
	Applies paddings of the renderer on the given rectangle More...

virtual bool	IsFirstOnRootArea ()

virtual MinMaxWidth	GetMinMaxWidth ()

Detailed Description

This class is used for convenient multi-column Document Layouting

Constructor & Destructor Documentation

◆ ColumnDocumentRenderer() [1/2]

iText.Layout.ColumnDocumentRenderer.ColumnDocumentRenderer	(	Document	document,
		Rectangle[]	columns
	)

inline

Creates a ColumnDocumentRenderer.

Creates a ColumnDocumentRenderer. Sets iText.Layout.Renderer.RootRenderer.immediateFlush to true.

Parameters

document	the Document on which this Renderer will calculate and execute element placements
columns	an array of iText.Kernel.Geom.Rectangle specifying the acceptable positions for elements on a page

◆ ColumnDocumentRenderer() [2/2]

iText.Layout.ColumnDocumentRenderer.ColumnDocumentRenderer	(	Document	document,
		bool	immediateFlush,
		Rectangle[]	columns
	)

inline

Creates a ColumnDocumentRenderer whose elements need not be flushed immediately.

Parameters

document	the Document on which this Renderer will calculate and execute element placements
immediateFlush	whether or not to flush contents as soon as possible
columns	an array of iText.Kernel.Geom.Rectangle specifying the acceptable positions for elements on a page

Member Function Documentation

◆ GetNextAreaNumber()

virtual int iText.Layout.ColumnDocumentRenderer.GetNextAreaNumber ( )

inlinevirtual

Gets the array index of the next area that will be written on after the current one is full (overflowed).

Returns: the array index of the next area that will be written on

◆ GetNextRenderer()

override IRenderer iText.Layout.ColumnDocumentRenderer.GetNextRenderer ( )
