This is a super class for the annotations which are defined as markup annotations because they are used primarily to mark up PDF documents. More...

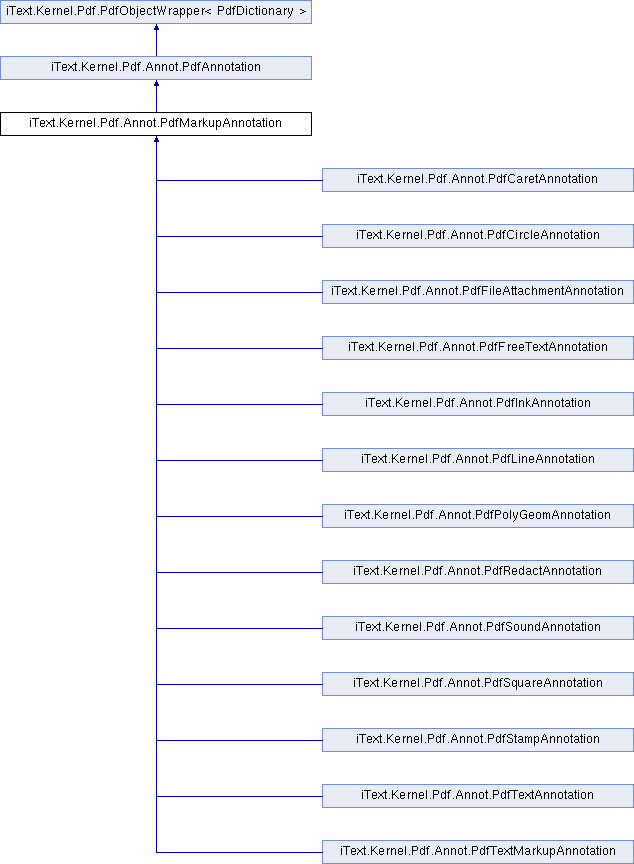

Inheritance diagram for iText.Kernel.Pdf.Annot.PdfMarkupAnnotation:

Public Member Functions
virtual PdfString	GetText ()
	The text label that will be displayed in the title bar of the annotation's pop-up window when open and active. More...

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation	SetText (PdfString text)
	Sets the text label that will be displayed in the title bar of the annotation's pop-up window when open and active. More...

virtual PdfNumber	GetOpacity ()
	The constant opacity value that will be used in painting the annotation. More...

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation	SetOpacity (PdfNumber ca)
	Sets the constant opacity value that will be used in painting the annotation. More...

virtual PdfObject	GetRichText ()
	A rich text string (see ISO-320001 12.7.3.4, "Rich Text Strings") that shall be displayed in the pop-up window when the annotation is opened. More...

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation	SetRichText (PdfObject richText)
	Sets a rich text string (see ISO-320001 12.7.3.4, "Rich Text Strings") that shall be displayed in the pop-up window when the annotation is opened. More...

virtual PdfString	GetCreationDate ()
	The date and time when the annotation was created. More...

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation	SetCreationDate (PdfString creationDate)
	Sets the date and time when the annotation was created. More...

virtual PdfDictionary	GetInReplyToObject ()
	An annotation object that this annotation is "in reply to." Both annotations shall be on the same page of the document. More...

virtual PdfAnnotation	GetInReplyTo ()
	An annotation that this annotation is "in reply to." Both annotations shall be on the same page of the document. More...

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation	SetInReplyTo (PdfAnnotation inReplyTo)
	Sets an annotation that this annotation is "in reply to." Both annotations shall be on the same page of the document. More...

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation	SetPopup (PdfPopupAnnotation popup)
	Sets a pop-up annotation for entering or editing the text associated with this annotation. More...

virtual PdfDictionary	GetPopupObject ()
	An associated pop-up annotation object. More...

virtual PdfPopupAnnotation	GetPopup ()
	An associated pop-up annotation for entering or editing the text associated with this annotation. More...

virtual PdfString	GetSubject ()
	Text representing a short description of the subject being addressed by the annotation. More...

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation	SetSubject (PdfString subject)
	Sets the text representing a short description of the subject being addressed by the annotation. More...

virtual PdfName	GetReplyType ()
	A name specifying the relationship (the "reply type") between this annotation and one specified by IRT entry (see GetInReplyTo() ). More...

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation	SetReplyType (PdfName replyType)
	Sets the relationship (the "reply type") between this annotation and one specified by IRT entry (see SetInReplyTo(PdfAnnotation) ). More...

virtual PdfName	GetIntent ()
	A name describing the intent of the markup annotation. More...

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation	SetIntent (PdfName intent)
	Sets a name describing the intent of the markup annotation. More...

virtual PdfDictionary	GetExternalData ()
	An external data dictionary specifying data that shall be associated with the annotation. More...

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation	SetExternalData (PdfDictionary exData)
	Sets an external data dictionary specifying data that shall be associated with the annotation. More...

Public Member Functions inherited from iText.Kernel.Pdf.Annot.PdfAnnotation
abstract PdfName	GetSubtype ()
	Gets a iText.Kernel.Pdf.PdfName which value is a subtype of this annotation. More...

virtual void	SetLayer (IPdfOCG layer)
	Sets the layer this annotation belongs to. More...

virtual PdfString	GetContents ()
	Gets the text that shall be displayed for the annotation or, if this type of annotation does not display text, an alternate description of the annotation’s contents in human-readable form. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetContents (PdfString contents)
	Sets the text that shall be displayed for the annotation or, if this type of annotation does not display text, an alternate description of the annotation’s contents in human-readable form. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetContents (String contents)
	Sets the text that shall be displayed for the annotation or, if this type of annotation does not display text, an alternate description of the annotation’s contents in human-readable form. More...

virtual PdfDictionary	GetPageObject ()
	Gets a iText.Kernel.Pdf.PdfDictionary that represents a page of the document on which annotation is placed, i.e. which has this annotation in it's /Annots array. More...

virtual PdfPage	GetPage ()
	Gets a iText.Kernel.Pdf.PdfPage on which annotation is placed. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetPage (PdfPage page)
	Method that modifies annotation page property, which defines to which page annotation belongs. More...

virtual PdfString	GetName ()
	Gets the annotation name, a text string uniquely identifying it among all the annotations on its page. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetName (PdfString name)
	Sets the annotation name, a text string uniquely identifying it among all the annotations on its page. More...

virtual PdfString	GetDate ()
	The date and time when the annotation was most recently modified. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetDate (PdfString date)
	The date and time when the annotation was most recently modified. More...

virtual int	GetFlags ()
	A set of flags specifying various characteristics of the annotation (see ISO-320001 12.5.3, "Annotation Flags"). More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetFlags (int flags)
	Sets a set of flags specifying various characteristics of the annotation (see ISO-320001 12.5.3, "Annotation Flags"). More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetFlag (int flag)
	Sets a flag that specifies a characteristic of the annotation to enabled state (see ISO-320001 12.5.3, "Annotation Flags"). More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	ResetFlag (int flag)
	Resets a flag that specifies a characteristic of the annotation to disabled state (see ISO-320001 12.5.3, "Annotation Flags"). More...

virtual bool	HasFlag (int flag)
	Checks if the certain flag that specifies a characteristic of the annotation is in enabled state (see ISO-320001 12.5.3, "Annotation Flags"). More...

virtual PdfDictionary	GetAppearanceDictionary ()
	An appearance dictionary specifying how the annotation shall be presented visually on the page during its interactions with the user (see ISO-320001 12.5.5, "Appearance Streams"). More...

virtual PdfDictionary	GetAppearanceObject (PdfName appearanceType)
	Specific appearance object corresponding to the specific appearance type. More...

virtual PdfDictionary	GetNormalAppearanceObject ()
	The normal appearance is used when the annotation is not interacting with the user. More...

virtual PdfDictionary	GetRolloverAppearanceObject ()
	The rollover appearance is used when the user moves the cursor into the annotation’s active area without pressing the mouse button. More...

virtual PdfDictionary	GetDownAppearanceObject ()
	The down appearance is used when the mouse button is pressed or held down within the annotation’s active area. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetAppearance (PdfName appearanceType, PdfDictionary appearance)
	Sets a specific type of the appearance. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetNormalAppearance (PdfDictionary appearance)
	Sets normal appearance. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetRolloverAppearance (PdfDictionary appearance)
	Sets rollover appearance. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetDownAppearance (PdfDictionary appearance)
	Sets down appearance. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetAppearance (PdfName appearanceType, PdfAnnotationAppearance appearance)
	Sets a specific type of the appearance using PdfAnnotationAppearance wrapper. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetNormalAppearance (PdfAnnotationAppearance appearance)
	Sets normal appearance using PdfAnnotationAppearance wrapper. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetRolloverAppearance (PdfAnnotationAppearance appearance)
	Sets rollover appearance using PdfAnnotationAppearance wrapper. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetDownAppearance (PdfAnnotationAppearance appearance)
	Sets down appearance using PdfAnnotationAppearance wrapper. More...

virtual PdfName	GetAppearanceState ()
	The annotation’s appearance state, which selects the applicable appearance stream from an appearance subdictionary if there is such. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetAppearanceState (PdfName @as)
	Sets the annotation’s appearance state, which selects the applicable appearance stream from an appearance subdictionary. More...

virtual PdfArray	GetBorder ()
	An array specifying the characteristics of the annotation’s border. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetBorder (PdfAnnotationBorder border)
	Sets the characteristics of the annotation’s border. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetBorder (PdfArray border)
	Sets the characteristics of the annotation’s border. More...

virtual PdfArray	GetColorObject ()
	An array of numbers in the range 0.0 to 1.0, representing a colour used for the following purposes: The background of the annotation’s icon when closed The title bar of the annotation’s pop-up window The border of a link annotation The number of array elements determines the colour space in which the colour shall be defined: 0 - No colour; transparent 1 - DeviceGray 3 - DeviceRGB 4 - DeviceCMYK More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetColor (PdfArray color)
	Sets an annotation color. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetColor (float[] color)
	Sets an annotation color. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetColor (Color color)
	Sets an annotation color. More...

virtual int	GetStructParentIndex ()
	The integer key of the annotation’s entry in the structural parent tree (see ISO-320001 14.7.4.4, "Finding Structure Elements from Content Items"). More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetStructParentIndex (int structParentIndex)
	Sets he integer key of the annotation’s entry in the structural parent tree (see ISO-320001 14.7.4.4, "Finding Structure Elements from Content Items"). More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetTitle (PdfString title)
	Sets annotation title. More...

virtual PdfString	GetTitle ()
	Annotation title. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetRectangle (PdfArray array)
	The annotation rectangle, defining the location of the annotation on the page in default user space units. More...

virtual PdfArray	GetRectangle ()
	The annotation rectangle, defining the location of the annotation on the page in default user space units. More...

virtual String	GetLang ()
	PDF 2.0. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetLang (String lang)
	PDF 2.0. More...

virtual PdfName	GetBlendMode ()
	PDF 2.0. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetBlendMode (PdfName blendMode)
	PDF 2.0. More...

virtual float	GetNonStrokingOpacity ()
	PDF 2.0. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetNonStrokingOpacity (float nonStrokingOpacity)
	PDF 2.0. More...

virtual float	GetStrokingOpacity ()
	PDF 2.0. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetStrokingOpacity (float strokingOpacity)
	PDF 2.0. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	Put (PdfName key, PdfObject value)
	Inserts the value into into the underlying iText.Kernel.Pdf.PdfDictionary of this PdfAnnotation and associates it with the specified key. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	Remove (PdfName key)
	Removes the specified key from the underlying iText.Kernel.Pdf.PdfDictionary of this PdfAnnotation. More...

virtual void	AddAssociatedFile (PdfFileSpec fs)

virtual PdfArray	GetAssociatedFiles (bool create)
	Returns files associated with PDF annotation. More...

override void	Flush ()
	To manually flush a `PdfObject` behind this wrapper, you have to ensure that this object is added to the document, i.e. it has an indirect reference. More...

Public Member Functions inherited from iText.Kernel.Pdf.PdfObjectWrapper< PdfDictionary >
virtual T	GetPdfObject ()

virtual iText.Kernel.Pdf.PdfObjectWrapper< T >	MakeIndirect (PdfDocument document, PdfIndirectReference reference)
	Marks object behind wrapper to be saved as indirect. More...

virtual iText.Kernel.Pdf.PdfObjectWrapper< T >	MakeIndirect (PdfDocument document)
	Marks object behind wrapper to be saved as indirect. More...

virtual iText.Kernel.Pdf.PdfObjectWrapper< T >	SetModified ()

virtual bool	IsFlushed ()

Package Functions
	PdfMarkupAnnotation (Rectangle rect)

	PdfMarkupAnnotation (PdfDictionary pdfObject)
	Instantiates a new PdfMarkupAnnotation instance based on iText.Kernel.Pdf.PdfDictionary instance, that represents existing annotation object in the document. More...

Package Functions inherited from iText.Kernel.Pdf.Annot.PdfAnnotation
	PdfAnnotation (Rectangle rect)

	PdfAnnotation (PdfDictionary pdfObject)

override bool	IsWrappedObjectMustBeIndirect ()
	Defines if the object behind this wrapper must be an indirect object in the resultant document. More...

Package Functions inherited from iText.Kernel.Pdf.PdfObjectWrapper< PdfDictionary >
	PdfObjectWrapper (T pdfObject)

virtual void	SetPdfObject (T pdfObject)

virtual void	SetForbidRelease ()

virtual void	UnsetForbidRelease ()

virtual void	EnsureUnderlyingObjectHasIndirectReference ()

Package Attributes
PdfAnnotation	inReplyTo = null

PdfPopupAnnotation	popup = null

Package Attributes inherited from iText.Kernel.Pdf.Annot.PdfAnnotation
PdfPage	page

Additional Inherited Members
Static Public Member Functions inherited from iText.Kernel.Pdf.Annot.PdfAnnotation
static iText.Kernel.Pdf.Annot.PdfAnnotation	MakeAnnotation (PdfObject pdfObject)
	Factory method that creates the type specific PdfAnnotation from the given iText.Kernel.Pdf.PdfObject that represents annotation object. More...

Static Public Attributes inherited from iText.Kernel.Pdf.Annot.PdfAnnotation
const int	INVISIBLE = 1
	Annotation flag. More...

const int	HIDDEN = 2
	Annotation flag. More...

const int	PRINT = 4
	Annotation flag. More...

const int	NO_ZOOM = 8
	Annotation flag. More...

const int	NO_ROTATE = 16
	Annotation flag. More...

const int	NO_VIEW = 32
	Annotation flag. More...

const int	READ_ONLY = 64
	Annotation flag. More...

const int	LOCKED = 128
	Annotation flag. More...

const int	TOGGLE_NO_VIEW = 256
	Annotation flag. More...

const int	LOCKED_CONTENTS = 512
	Annotation flag. More...

static readonly PdfName	HIGHLIGHT_NONE = PdfName.N
	Widget annotation highlighting mode. More...

static readonly PdfName	HIGHLIGHT_INVERT = PdfName.I
	Widget annotation highlighting mode. More...

static readonly PdfName	HIGHLIGHT_OUTLINE = PdfName.O
	Widget annotation highlighting mode. More...

static readonly PdfName	HIGHLIGHT_PUSH = PdfName.P
	Widget annotation highlighting mode. More...

static readonly PdfName	HIGHLIGHT_TOGGLE = PdfName.T
	Widget annotation highlighting mode. More...

static readonly PdfName	STYLE_SOLID = PdfName.S
	Annotation border style. More...

static readonly PdfName	STYLE_DASHED = PdfName.D
	Annotation border style. More...

static readonly PdfName	STYLE_BEVELED = PdfName.B
	Annotation border style. More...

static readonly PdfName	STYLE_INSET = PdfName.I
	Annotation border style. More...

static readonly PdfName	STYLE_UNDERLINE = PdfName.U
	Annotation border style. More...

static readonly PdfString	Marked = new PdfString("Marked")
	Annotation state. More...

static readonly PdfString	Unmarked = new PdfString("Unmarked")
	Annotation state. More...

static readonly PdfString	Accepted = new PdfString("Accepted")
	Annotation state. More...

static readonly PdfString	Rejected = new PdfString("Rejected")
	Annotation state. More...

static readonly PdfString	Canceled = new PdfString("Cancelled")
	Annotation state. More...

static readonly PdfString	Completed = new PdfString("Completed")
	Annotation state. More...

static readonly PdfString	None = new PdfString("None")
	Annotation state. More...

static readonly PdfString	MarkedModel = new PdfString("Marked")
	Annotation state model. More...

static readonly PdfString	ReviewModel = new PdfString("Review")
	Annotation state model. More...

Static Package Functions inherited from iText.Kernel.Pdf.PdfObjectWrapper< PdfDictionary >
static void	MarkObjectAsIndirect (PdfObject pdfObject)

static void	EnsureObjectIsAddedToDocument (PdfObject @object)
	Some wrappers use object's indirect reference to obtain the `PdfDocument` to which the object belongs to. More...

Detailed Description

This is a super class for the annotations which are defined as markup annotations because they are used primarily to mark up PDF documents.

This is a super class for the annotations which are defined as markup annotations because they are used primarily to mark up PDF documents. These annotations have text that appears as part of the annotation and may be displayed in other ways by a conforming reader, such as in a Comments pane. See also ISO-320001 12.5.6.2 "Markup Annotations".

Constructor & Destructor Documentation

◆ PdfMarkupAnnotation()

iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.PdfMarkupAnnotation ( PdfDictionary pdfObject )

inlinepackage

Instantiates a new PdfMarkupAnnotation instance based on iText.Kernel.Pdf.PdfDictionary instance, that represents existing annotation object in the document.

Parameters

pdfObject the iText.Kernel.Pdf.PdfDictionary representing annotation object

See also: PdfAnnotation.MakeAnnotation(iText.Kernel.Pdf.PdfObject)

Member Function Documentation

◆ GetCreationDate()

virtual PdfString iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.GetCreationDate ( )

inlinevirtual

The date and time when the annotation was created.

Returns: a iText.Kernel.Pdf.PdfString which value should be in the date format specified in (ISO-320001 7.9.4, "Dates").

◆ GetExternalData()

virtual PdfDictionary iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.GetExternalData ( )

inlinevirtual

An external data dictionary specifying data that shall be associated with the annotation.

An external data dictionary specifying data that shall be associated with the annotation. This dictionary contains the following entries:

iText.Kernel.Pdf.PdfName.Type
- (optional) If present, shall be iText.Kernel.Pdf.PdfName.ExData.
iText.Kernel.Pdf.PdfName.Subtype
- (required) a name specifying the type of data that the markup annotation shall be associated with. The only defined value is iText.Kernel.Pdf.PdfName.Markup3D . Table 298 (ISO-320001) lists the values that correspond to a subtype of Markup3D (See also Pdf3DAnnotation ).

Returns: An external data iText.Kernel.Pdf.PdfDictionary , or null if not specified.

◆ GetInReplyTo()

virtual PdfAnnotation iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.GetInReplyTo ( )

inlinevirtual

An annotation that this annotation is "in reply to." Both annotations shall be on the same page of the document.

An annotation that this annotation is "in reply to." Both annotations shall be on the same page of the document. The relationship between the two annotations shall be specified by the RT entry (see GetReplyType() ).

Returns: a PdfAnnotation that this annotation is "in reply to."

◆ GetInReplyToObject()

virtual PdfDictionary iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.GetInReplyToObject ( )

inlinevirtual

An annotation object that this annotation is "in reply to." Both annotations shall be on the same page of the document.

An annotation object that this annotation is "in reply to." Both annotations shall be on the same page of the document. The relationship between the two annotations shall be specified by the RT entry (see GetReplyType() ).

Returns: a iText.Kernel.Pdf.PdfDictionary that represents an annotation that this annotation is "in reply to."

◆ GetIntent()

virtual PdfName iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.GetIntent ( )

inlinevirtual

A name describing the intent of the markup annotation.

A name describing the intent of the markup annotation. See SetIntent(iText.Kernel.Pdf.PdfName) for more info.

Returns: a iText.Kernel.Pdf.PdfName describing the intent of the markup annotation, or null if not specified.

◆ GetOpacity()

virtual PdfNumber iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.GetOpacity ( )

inlinevirtual

The constant opacity value that will be used in painting the annotation.

The constant opacity value that will be used in painting the annotation. This value is applied to all visible elements of the annotation in its closed state (including its background and border) but not to the pop-up window that appears when the annotation is opened. Default value: 1.0.

Returns: a iText.Kernel.Pdf.PdfNumber which value is in range between 0 and 1, which specifies the level of opacity. This method returns null if opacity is not specified; in this case default value is used, which is 1.

◆ GetPopup()

virtual PdfPopupAnnotation iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.GetPopup ( )

inlinevirtual

An associated pop-up annotation for entering or editing the text associated with this annotation.

An associated pop-up annotation for entering or editing the text associated with this annotation. Pop-up annotation defines an associated with this annotation pop-up window that may contain text. The Contents (see PdfAnnotation.GetContents() ) entry of the annotation that has an associated popup specifies the text that shall be displayed when the pop-up window is opened.

Returns: an PdfPopupAnnotation that is associated with this annotation, or null if there is none.

◆ GetPopupObject()

virtual PdfDictionary iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.GetPopupObject ( )

inlinevirtual

An associated pop-up annotation object.

An associated pop-up annotation object. See GetPopup() for more info.

Returns: a iText.Kernel.Pdf.PdfDictionary that represents an associated pop-up annotation, or null if popup annotation is not specified.

◆ GetReplyType()

virtual PdfName iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.GetReplyType ( )

inlinevirtual

A name specifying the relationship (the "reply type") between this annotation and one specified by IRT entry (see GetInReplyTo() ).

A name specifying the relationship (the "reply type") between this annotation and one specified by IRT entry (see GetInReplyTo() ). Valid values are:

iText.Kernel.Pdf.PdfName.R
- The annotation shall be considered a reply to the annotation specified by IRT. Conforming readers shall not display replies to an annotation individually but together in the form of threaded comments.
iText.Kernel.Pdf.PdfName.Group
- The annotation shall be grouped with the annotation specified by IRT.

Returns: a iText.Kernel.Pdf.PdfName specifying relationship with the specified by the IRT entry; or null if reply type is not specified, in this case the default value is iText.Kernel.Pdf.PdfName.R.

◆ GetRichText()

virtual PdfObject iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.GetRichText ( )

inlinevirtual

A rich text string (see ISO-320001 12.7.3.4, "Rich Text Strings") that shall be displayed in the pop-up window when the annotation is opened.

Returns: text string or text stream that specifies rich text or null if rich text is not specified.

◆ GetSubject()

virtual PdfString iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.GetSubject ( )

inlinevirtual

Text representing a short description of the subject being addressed by the annotation.

Returns: a iText.Kernel.Pdf.PdfString which value is a annotation subject.

◆ GetText()

virtual PdfString iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.GetText ( )

inlinevirtual

The text label that will be displayed in the title bar of the annotation's pop-up window when open and active.

The text label that will be displayed in the title bar of the annotation's pop-up window when open and active. This entry shall identify the user who added the annotation.

Returns

iText.Kernel.Pdf.PdfString which value is an annotation text label content or null if text is not specified.

◆ SetCreationDate()

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.SetCreationDate ( PdfString creationDate )

inlinevirtual

Sets the date and time when the annotation was created.

Parameters

creationDate

iText.Kernel.Pdf.PdfString which value should be in the date format specified in (ISO-320001 7.9.4, "Dates").

Returns: this PdfMarkupAnnotation instance.

◆ SetExternalData()

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.SetExternalData ( PdfDictionary exData )

inlinevirtual

Sets an external data dictionary specifying data that shall be associated with the annotation.

Sets an external data dictionary specifying data that shall be associated with the annotation. This dictionary should contain the following entries:

iText.Kernel.Pdf.PdfName.Type
- (optional) If present, shall be iText.Kernel.Pdf.PdfName.ExData.
iText.Kernel.Pdf.PdfName.Subtype
- (required) a name specifying the type of data that the markup annotation shall be associated with. The only defined value is iText.Kernel.Pdf.PdfName.Markup3D . Table 298 (ISO-320001) lists the values that correspond to a subtype of Markup3D (See also Pdf3DAnnotation ).

Parameters

exData the external data dictionary

Returns: this PdfMarkupAnnotation instance

◆ SetInReplyTo()

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.SetInReplyTo ( PdfAnnotation inReplyTo )

inlinevirtual

Sets an annotation that this annotation is "in reply to." Both annotations shall be on the same page of the document.

Sets an annotation that this annotation is "in reply to." Both annotations shall be on the same page of the document. The relationship between the two annotations shall be specified by the RT entry (see GetReplyType() ).

Parameters

inReplyTo a PdfAnnotation that this annotation is "in reply to."

Returns: this PdfMarkupAnnotation instance.

◆ SetIntent()

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.SetIntent ( PdfName intent )

inlinevirtual

Sets a name describing the intent of the markup annotation.

Sets a name describing the intent of the markup annotation. Intents allow conforming readers to distinguish between different uses and behaviors of a single markup annotation type. If this entry is not present or its value is the same as the annotation type, the annotation shall have no explicit intent and should behave in a generic manner in a conforming reader.

See ISO-320001, free text annotations (Table 174), line annotations (Table 175), polygon annotations (Table 178), and polyline annotations (Table 178) for the specific intent values for those types.

Parameters

intent a iText.Kernel.Pdf.PdfName describing the intent of the markup annotation.

Returns: this PdfMarkupAnnotation instance.

◆ SetOpacity()

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.SetOpacity ( PdfNumber ca )

inlinevirtual

Sets the constant opacity value that will be used in painting the annotation.

Parameters

ca	a iText.Kernel.Pdf.PdfNumber which value is in range between 0 and 1, which specifies the level of opacity.

Returns: this PdfMarkupAnnotation instance.

See also: GetOpacity()

◆ SetPopup()

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.SetPopup ( PdfPopupAnnotation popup )

inlinevirtual

Sets a pop-up annotation for entering or editing the text associated with this annotation.

Sets a pop-up annotation for entering or editing the text associated with this annotation. Pop-up annotation defines an associated with this annotation pop-up window that may contain text. The Contents (see PdfAnnotation.SetContents(iText.Kernel.Pdf.PdfString) ) entry of the annotation that has an associated popup specifies the text that shall be displayed when the pop-up window is opened.

Parameters

popup an PdfPopupAnnotation that will be associated with this annotation.

Returns: this PdfMarkupAnnotation instance.

◆ SetReplyType()

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.SetReplyType ( PdfName replyType )

inlinevirtual

Sets the relationship (the "reply type") between this annotation and one specified by IRT entry (see SetInReplyTo(PdfAnnotation) ).

Sets the relationship (the "reply type") between this annotation and one specified by IRT entry (see SetInReplyTo(PdfAnnotation) ). For valid values see GetInReplyTo().

Parameters

replyType a iText.Kernel.Pdf.PdfName specifying relationship with the specified by the IRT entry.

Returns: this PdfMarkupAnnotation instance.

◆ SetRichText()

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.SetRichText ( PdfObject richText )

inlinevirtual

Sets a rich text string (see ISO-320001 12.7.3.4, "Rich Text Strings") that shall be displayed in the pop-up window when the annotation is opened.

Parameters

richText text string or text stream that specifies rich text.

Returns: this PdfMarkupAnnotation instance.

◆ SetSubject()

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.SetSubject ( PdfString subject )

inlinevirtual

Sets the text representing a short description of the subject being addressed by the annotation.

Parameters

subject a iText.Kernel.Pdf.PdfString which value is a annotation subject.

Returns: this PdfMarkupAnnotation instance.

◆ SetText()

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation iText.Kernel.Pdf.Annot.PdfMarkupAnnotation.SetText ( PdfString text )

inlinevirtual

Sets the text label that will be displayed in the title bar of the annotation's pop-up window when open and active.

Sets the text label that will be displayed in the title bar of the annotation's pop-up window when open and active. This entry shall identify the user who added the annotation.

Parameters

text

iText.Kernel.Pdf.PdfString which value is an annotation text label content.

Returns: this PdfMarkupAnnotation instance.

Public Member Functions

Package Functions

Package Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ PdfMarkupAnnotation()

Member Function Documentation

◆ GetCreationDate()

◆ GetExternalData()

◆ GetInReplyTo()

◆ GetInReplyToObject()

◆ GetIntent()

◆ GetOpacity()

◆ GetPopup()

◆ GetPopupObject()

◆ GetReplyType()

◆ GetRichText()

◆ GetSubject()

◆ GetText()

◆ SetCreationDate()

◆ SetExternalData()

◆ SetInReplyTo()

◆ SetIntent()

◆ SetOpacity()

◆ SetPopup()

◆ SetReplyType()

◆ SetRichText()

◆ SetSubject()

◆ SetText()
