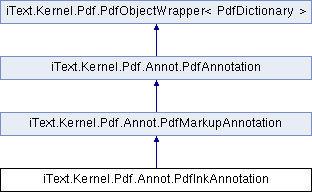

Inheritance diagram for iText.Kernel.Pdf.Annot.PdfInkAnnotation:

Public Member Functions
	PdfInkAnnotation (Rectangle rect)

	PdfInkAnnotation (Rectangle rect, PdfArray inkList)

override PdfName	GetSubtype ()
	Gets a iText.Kernel.Pdf.PdfName which value is a subtype of this annotation. More...

virtual PdfDictionary	GetBorderStyle ()
	The dictionaries for some annotation types (such as free text and polygon annotations) can include the BS entry. More...

virtual iText.Kernel.Pdf.Annot.PdfInkAnnotation	SetBorderStyle (PdfDictionary borderStyle)
	Sets border style dictionary that has more settings than the array specified for the Border entry ( PdfAnnotation.GetBorder() ). More...

virtual iText.Kernel.Pdf.Annot.PdfInkAnnotation	SetBorderStyle (PdfName style)
	Setter for the annotation's preset border style. More...

virtual iText.Kernel.Pdf.Annot.PdfInkAnnotation	SetDashPattern (PdfArray dashPattern)
	Setter for the annotation's preset dashed border style. More...

Public Member Functions inherited from iText.Kernel.Pdf.Annot.PdfMarkupAnnotation
virtual PdfString	GetText ()
	The text label that will be displayed in the title bar of the annotation's pop-up window when open and active. More...

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation	SetText (PdfString text)
	Sets the text label that will be displayed in the title bar of the annotation's pop-up window when open and active. More...

virtual PdfNumber	GetOpacity ()
	The constant opacity value that will be used in painting the annotation. More...

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation	SetOpacity (PdfNumber ca)
	Sets the constant opacity value that will be used in painting the annotation. More...

virtual PdfObject	GetRichText ()
	A rich text string (see ISO-320001 12.7.3.4, "Rich Text Strings") that shall be displayed in the pop-up window when the annotation is opened. More...

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation	SetRichText (PdfObject richText)
	Sets a rich text string (see ISO-320001 12.7.3.4, "Rich Text Strings") that shall be displayed in the pop-up window when the annotation is opened. More...

virtual PdfString	GetCreationDate ()
	The date and time when the annotation was created. More...

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation	SetCreationDate (PdfString creationDate)
	Sets the date and time when the annotation was created. More...

virtual PdfDictionary	GetInReplyToObject ()
	An annotation object that this annotation is "in reply to." Both annotations shall be on the same page of the document. More...

virtual PdfAnnotation	GetInReplyTo ()
	An annotation that this annotation is "in reply to." Both annotations shall be on the same page of the document. More...

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation	SetInReplyTo (PdfAnnotation inReplyTo)
	Sets an annotation that this annotation is "in reply to." Both annotations shall be on the same page of the document. More...

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation	SetPopup (PdfPopupAnnotation popup)
	Sets a pop-up annotation for entering or editing the text associated with this annotation. More...

virtual PdfDictionary	GetPopupObject ()
	An associated pop-up annotation object. More...

virtual PdfPopupAnnotation	GetPopup ()
	An associated pop-up annotation for entering or editing the text associated with this annotation. More...

virtual PdfString	GetSubject ()
	Text representing a short description of the subject being addressed by the annotation. More...

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation	SetSubject (PdfString subject)
	Sets the text representing a short description of the subject being addressed by the annotation. More...

virtual PdfName	GetReplyType ()
	A name specifying the relationship (the "reply type") between this annotation and one specified by IRT entry (see GetInReplyTo() ). More...

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation	SetReplyType (PdfName replyType)
	Sets the relationship (the "reply type") between this annotation and one specified by IRT entry (see SetInReplyTo(PdfAnnotation) ). More...

virtual PdfName	GetIntent ()
	A name describing the intent of the markup annotation. More...

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation	SetIntent (PdfName intent)
	Sets a name describing the intent of the markup annotation. More...

virtual PdfDictionary	GetExternalData ()
	An external data dictionary specifying data that shall be associated with the annotation. More...

virtual iText.Kernel.Pdf.Annot.PdfMarkupAnnotation	SetExternalData (PdfDictionary exData)
	Sets an external data dictionary specifying data that shall be associated with the annotation. More...

Public Member Functions inherited from iText.Kernel.Pdf.Annot.PdfAnnotation
virtual void	SetLayer (IPdfOCG layer)
	Sets the layer this annotation belongs to. More...

virtual PdfString	GetContents ()
	Gets the text that shall be displayed for the annotation or, if this type of annotation does not display text, an alternate description of the annotation’s contents in human-readable form. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetContents (PdfString contents)
	Sets the text that shall be displayed for the annotation or, if this type of annotation does not display text, an alternate description of the annotation’s contents in human-readable form. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetContents (String contents)
	Sets the text that shall be displayed for the annotation or, if this type of annotation does not display text, an alternate description of the annotation’s contents in human-readable form. More...

virtual PdfDictionary	GetPageObject ()
	Gets a iText.Kernel.Pdf.PdfDictionary that represents a page of the document on which annotation is placed, i.e. which has this annotation in it's /Annots array. More...

virtual PdfPage	GetPage ()
	Gets a iText.Kernel.Pdf.PdfPage on which annotation is placed. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetPage (PdfPage page)
	Method that modifies annotation page property, which defines to which page annotation belongs. More...

virtual PdfString	GetName ()
	Gets the annotation name, a text string uniquely identifying it among all the annotations on its page. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetName (PdfString name)
	Sets the annotation name, a text string uniquely identifying it among all the annotations on its page. More...

virtual PdfString	GetDate ()
	The date and time when the annotation was most recently modified. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetDate (PdfString date)
	The date and time when the annotation was most recently modified. More...

virtual int	GetFlags ()
	A set of flags specifying various characteristics of the annotation (see ISO-320001 12.5.3, "Annotation Flags"). More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetFlags (int flags)
	Sets a set of flags specifying various characteristics of the annotation (see ISO-320001 12.5.3, "Annotation Flags"). More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetFlag (int flag)
	Sets a flag that specifies a characteristic of the annotation to enabled state (see ISO-320001 12.5.3, "Annotation Flags"). More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	ResetFlag (int flag)
	Resets a flag that specifies a characteristic of the annotation to disabled state (see ISO-320001 12.5.3, "Annotation Flags"). More...

virtual bool	HasFlag (int flag)
	Checks if the certain flag that specifies a characteristic of the annotation is in enabled state (see ISO-320001 12.5.3, "Annotation Flags"). More...

virtual PdfDictionary	GetAppearanceDictionary ()
	An appearance dictionary specifying how the annotation shall be presented visually on the page during its interactions with the user (see ISO-320001 12.5.5, "Appearance Streams"). More...

virtual PdfDictionary	GetAppearanceObject (PdfName appearanceType)
	Specific appearance object corresponding to the specific appearance type. More...

virtual PdfDictionary	GetNormalAppearanceObject ()
	The normal appearance is used when the annotation is not interacting with the user. More...

virtual PdfDictionary	GetRolloverAppearanceObject ()
	The rollover appearance is used when the user moves the cursor into the annotation’s active area without pressing the mouse button. More...

virtual PdfDictionary	GetDownAppearanceObject ()
	The down appearance is used when the mouse button is pressed or held down within the annotation’s active area. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetAppearance (PdfName appearanceType, PdfDictionary appearance)
	Sets a specific type of the appearance. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetNormalAppearance (PdfDictionary appearance)
	Sets normal appearance. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetRolloverAppearance (PdfDictionary appearance)
	Sets rollover appearance. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetDownAppearance (PdfDictionary appearance)
	Sets down appearance. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetAppearance (PdfName appearanceType, PdfAnnotationAppearance appearance)
	Sets a specific type of the appearance using PdfAnnotationAppearance wrapper. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetNormalAppearance (PdfAnnotationAppearance appearance)
	Sets normal appearance using PdfAnnotationAppearance wrapper. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetRolloverAppearance (PdfAnnotationAppearance appearance)
	Sets rollover appearance using PdfAnnotationAppearance wrapper. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetDownAppearance (PdfAnnotationAppearance appearance)
	Sets down appearance using PdfAnnotationAppearance wrapper. More...

virtual PdfName	GetAppearanceState ()
	The annotation’s appearance state, which selects the applicable appearance stream from an appearance subdictionary if there is such. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetAppearanceState (PdfName @as)
	Sets the annotation’s appearance state, which selects the applicable appearance stream from an appearance subdictionary. More...

virtual PdfArray	GetBorder ()
	An array specifying the characteristics of the annotation’s border. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetBorder (PdfAnnotationBorder border)
	Sets the characteristics of the annotation’s border. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetBorder (PdfArray border)
	Sets the characteristics of the annotation’s border. More...

virtual PdfArray	GetColorObject ()
	An array of numbers in the range 0.0 to 1.0, representing a colour used for the following purposes: The background of the annotation’s icon when closed The title bar of the annotation’s pop-up window The border of a link annotation The number of array elements determines the colour space in which the colour shall be defined: 0 - No colour; transparent 1 - DeviceGray 3 - DeviceRGB 4 - DeviceCMYK More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetColor (PdfArray color)
	Sets an annotation color. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetColor (float[] color)
	Sets an annotation color. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetColor (Color color)
	Sets an annotation color. More...

virtual int	GetStructParentIndex ()
	The integer key of the annotation’s entry in the structural parent tree (see ISO-320001 14.7.4.4, "Finding Structure Elements from Content Items"). More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetStructParentIndex (int structParentIndex)
	Sets he integer key of the annotation’s entry in the structural parent tree (see ISO-320001 14.7.4.4, "Finding Structure Elements from Content Items"). More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetTitle (PdfString title)
	Sets annotation title. More...

virtual PdfString	GetTitle ()
	Annotation title. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetRectangle (PdfArray array)
	The annotation rectangle, defining the location of the annotation on the page in default user space units. More...

virtual PdfArray	GetRectangle ()
	The annotation rectangle, defining the location of the annotation on the page in default user space units. More...

virtual String	GetLang ()
	PDF 2.0. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetLang (String lang)
	PDF 2.0. More...

virtual PdfName	GetBlendMode ()
	PDF 2.0. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetBlendMode (PdfName blendMode)
	PDF 2.0. More...

virtual float	GetNonStrokingOpacity ()
	PDF 2.0. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetNonStrokingOpacity (float nonStrokingOpacity)
	PDF 2.0. More...

virtual float	GetStrokingOpacity ()
	PDF 2.0. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	SetStrokingOpacity (float strokingOpacity)
	PDF 2.0. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	Put (PdfName key, PdfObject value)
	Inserts the value into into the underlying iText.Kernel.Pdf.PdfDictionary of this PdfAnnotation and associates it with the specified key. More...

virtual iText.Kernel.Pdf.Annot.PdfAnnotation	Remove (PdfName key)
	Removes the specified key from the underlying iText.Kernel.Pdf.PdfDictionary of this PdfAnnotation. More...

virtual void	AddAssociatedFile (PdfFileSpec fs)

virtual PdfArray	GetAssociatedFiles (bool create)
	Returns files associated with PDF annotation. More...

override void	Flush ()
	To manually flush a `PdfObject` behind this wrapper, you have to ensure that this object is added to the document, i.e. it has an indirect reference. More...

Public Member Functions inherited from iText.Kernel.Pdf.PdfObjectWrapper< PdfDictionary >
virtual T	GetPdfObject ()

virtual iText.Kernel.Pdf.PdfObjectWrapper< T >	MakeIndirect (PdfDocument document, PdfIndirectReference reference)
	Marks object behind wrapper to be saved as indirect. More...

virtual iText.Kernel.Pdf.PdfObjectWrapper< T >	MakeIndirect (PdfDocument document)
	Marks object behind wrapper to be saved as indirect. More...

virtual iText.Kernel.Pdf.PdfObjectWrapper< T >	SetModified ()

virtual bool	IsFlushed ()

Package Functions
	PdfInkAnnotation (PdfDictionary pdfObject)
	Instantiates a new PdfInkAnnotation instance based on iText.Kernel.Pdf.PdfDictionary instance, that represents existing annotation object in the document. More...

Package Functions inherited from iText.Kernel.Pdf.Annot.PdfMarkupAnnotation
	PdfMarkupAnnotation (Rectangle rect)

	PdfMarkupAnnotation (PdfDictionary pdfObject)
	Instantiates a new PdfMarkupAnnotation instance based on iText.Kernel.Pdf.PdfDictionary instance, that represents existing annotation object in the document. More...

Package Functions inherited from iText.Kernel.Pdf.Annot.PdfAnnotation
	PdfAnnotation (Rectangle rect)

	PdfAnnotation (PdfDictionary pdfObject)

override bool	IsWrappedObjectMustBeIndirect ()
	Defines if the object behind this wrapper must be an indirect object in the resultant document. More...

Package Functions inherited from iText.Kernel.Pdf.PdfObjectWrapper< PdfDictionary >
	PdfObjectWrapper (T pdfObject)

virtual void	SetPdfObject (T pdfObject)

virtual void	SetForbidRelease ()

virtual void	UnsetForbidRelease ()

virtual void	EnsureUnderlyingObjectHasIndirectReference ()

Additional Inherited Members
Static Public Member Functions inherited from iText.Kernel.Pdf.Annot.PdfAnnotation
static iText.Kernel.Pdf.Annot.PdfAnnotation	MakeAnnotation (PdfObject pdfObject)
	Factory method that creates the type specific PdfAnnotation from the given iText.Kernel.Pdf.PdfObject that represents annotation object. More...

Static Public Attributes inherited from iText.Kernel.Pdf.Annot.PdfAnnotation
const int	INVISIBLE = 1
	Annotation flag. More...

const int	HIDDEN = 2
	Annotation flag. More...

const int	PRINT = 4
	Annotation flag. More...

const int	NO_ZOOM = 8
	Annotation flag. More...

const int	NO_ROTATE = 16
	Annotation flag. More...

const int	NO_VIEW = 32
	Annotation flag. More...

const int	READ_ONLY = 64
	Annotation flag. More...

const int	LOCKED = 128
	Annotation flag. More...

const int	TOGGLE_NO_VIEW = 256
	Annotation flag. More...

const int	LOCKED_CONTENTS = 512
	Annotation flag. More...

static readonly PdfName	HIGHLIGHT_NONE = PdfName.N
	Widget annotation highlighting mode. More...

static readonly PdfName	HIGHLIGHT_INVERT = PdfName.I
	Widget annotation highlighting mode. More...

static readonly PdfName	HIGHLIGHT_OUTLINE = PdfName.O
	Widget annotation highlighting mode. More...

static readonly PdfName	HIGHLIGHT_PUSH = PdfName.P
	Widget annotation highlighting mode. More...

static readonly PdfName	HIGHLIGHT_TOGGLE = PdfName.T
	Widget annotation highlighting mode. More...

static readonly PdfName	STYLE_SOLID = PdfName.S
	Annotation border style. More...

static readonly PdfName	STYLE_DASHED = PdfName.D
	Annotation border style. More...

static readonly PdfName	STYLE_BEVELED = PdfName.B
	Annotation border style. More...

static readonly PdfName	STYLE_INSET = PdfName.I
	Annotation border style. More...

static readonly PdfName	STYLE_UNDERLINE = PdfName.U
	Annotation border style. More...

static readonly PdfString	Marked = new PdfString("Marked")
	Annotation state. More...

static readonly PdfString	Unmarked = new PdfString("Unmarked")
	Annotation state. More...

static readonly PdfString	Accepted = new PdfString("Accepted")
	Annotation state. More...

static readonly PdfString	Rejected = new PdfString("Rejected")
	Annotation state. More...

static readonly PdfString	Canceled = new PdfString("Cancelled")
	Annotation state. More...

static readonly PdfString	Completed = new PdfString("Completed")
	Annotation state. More...

static readonly PdfString	None = new PdfString("None")
	Annotation state. More...

static readonly PdfString	MarkedModel = new PdfString("Marked")
	Annotation state model. More...

static readonly PdfString	ReviewModel = new PdfString("Review")
	Annotation state model. More...

Static Package Functions inherited from iText.Kernel.Pdf.PdfObjectWrapper< PdfDictionary >
static void	MarkObjectAsIndirect (PdfObject pdfObject)

static void	EnsureObjectIsAddedToDocument (PdfObject @object)
	Some wrappers use object's indirect reference to obtain the `PdfDocument` to which the object belongs to. More...

Package Attributes inherited from iText.Kernel.Pdf.Annot.PdfMarkupAnnotation
PdfAnnotation	inReplyTo = null

PdfPopupAnnotation	popup = null

Package Attributes inherited from iText.Kernel.Pdf.Annot.PdfAnnotation
PdfPage	page

Constructor & Destructor Documentation

◆ PdfInkAnnotation()

iText.Kernel.Pdf.Annot.PdfInkAnnotation.PdfInkAnnotation ( PdfDictionary pdfObject )

inlinepackage

Instantiates a new PdfInkAnnotation instance based on iText.Kernel.Pdf.PdfDictionary instance, that represents existing annotation object in the document.

Parameters

pdfObject the iText.Kernel.Pdf.PdfDictionary representing annotation object

See also: PdfAnnotation.MakeAnnotation(iText.Kernel.Pdf.PdfObject)

Member Function Documentation

◆ GetBorderStyle()

virtual PdfDictionary iText.Kernel.Pdf.Annot.PdfInkAnnotation.GetBorderStyle ( )

inlinevirtual

The dictionaries for some annotation types (such as free text and polygon annotations) can include the BS entry.

The dictionaries for some annotation types (such as free text and polygon annotations) can include the BS entry. That entry specifies a border style dictionary that has more settings than the array specified for the Border entry (see PdfAnnotation.GetBorder() ). If an annotation dictionary includes the BS entry, then the Border entry is ignored. If annotation includes AP (see PdfAnnotation.GetAppearanceDictionary() ) it takes precedence over the BS entry. For more info on BS entry see ISO-320001, Table 166.

Returns

iText.Kernel.Pdf.PdfDictionary which is a border style dictionary or null if it is not specified.

◆ GetSubtype()

override PdfName iText.Kernel.Pdf.Annot.PdfInkAnnotation.GetSubtype ( )

inlinevirtual

Gets a iText.Kernel.Pdf.PdfName which value is a subtype of this annotation.

Gets a iText.Kernel.Pdf.PdfName which value is a subtype of this annotation. See ISO-320001 12.5.6, "Annotation Types" for the reference to the possible types.

Returns: subtype of this annotation.

Implements iText.Kernel.Pdf.Annot.PdfAnnotation.

◆ SetBorderStyle() [1/2]

virtual iText.Kernel.Pdf.Annot.PdfInkAnnotation iText.Kernel.Pdf.Annot.PdfInkAnnotation.SetBorderStyle ( PdfDictionary borderStyle )

inlinevirtual

Sets border style dictionary that has more settings than the array specified for the Border entry ( PdfAnnotation.GetBorder() ).

Sets border style dictionary that has more settings than the array specified for the Border entry ( PdfAnnotation.GetBorder() ). See ISO-320001, Table 166 and GetBorderStyle() for more info.

Parameters

borderStyle a border style dictionary specifying the line width and dash pattern that shall be used in drawing the annotation’s border.

Returns: this PdfInkAnnotation instance.

◆ SetBorderStyle() [2/2]

virtual iText.Kernel.Pdf.Annot.PdfInkAnnotation iText.Kernel.Pdf.Annot.PdfInkAnnotation.SetBorderStyle ( PdfName style )

inlinevirtual

Setter for the annotation's preset border style.

Setter for the annotation's preset border style. Possible values are

PdfAnnotation.STYLE_SOLID
- A solid rectangle surrounding the annotation.
PdfAnnotation.STYLE_DASHED
- A dashed rectangle surrounding the annotation.
PdfAnnotation.STYLE_BEVELED
- A simulated embossed rectangle that appears to be raised above the surface of the page.
PdfAnnotation.STYLE_INSET
- A simulated engraved rectangle that appears to be recessed below the surface of the page.
PdfAnnotation.STYLE_UNDERLINE
- A single line along the bottom of the annotation rectangle.

◆ SetDashPattern()

virtual iText.Kernel.Pdf.Annot.PdfInkAnnotation iText.Kernel.Pdf.Annot.PdfInkAnnotation.SetDashPattern ( PdfArray dashPattern )

inlinevirtual

Setter for the annotation's preset dashed border style.

Setter for the annotation's preset dashed border style. This property has affect only if PdfAnnotation.STYLE_DASHED style was used for the annotation border style (see SetBorderStyle(iText.Kernel.Pdf.PdfName). See ISO-320001 8.4.3.6, "Line Dash Pattern" for the format in which dash pattern shall be specified.

Parameters

dashPattern a dash array defining a pattern of dashes and gaps that shall be used in drawing a dashed border.

Returns: this PdfInkAnnotation instance.

Public Member Functions

Package Functions

Additional Inherited Members

Constructor & Destructor Documentation

◆ PdfInkAnnotation()

Member Function Documentation

◆ GetBorderStyle()

◆ GetSubtype()

◆ SetBorderStyle() [1/2]

◆ SetBorderStyle() [2/2]

◆ SetDashPattern()
