Base representation of a font program and its glyph, naming, and metric data. More...

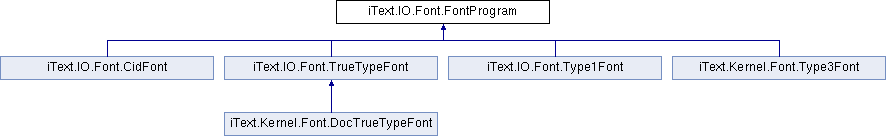

Inheritance diagram for iText.IO.Font.FontProgram:

Public Member Functions
virtual int	CountOfGlyphs ()
	Gets the amount of glyphs in this font program. More...

virtual FontNames	GetFontNames ()
	Gets the parsed font naming data. More...

virtual FontMetrics	GetFontMetrics ()
	Gets the parsed font metric data. More...

virtual FontIdentification	GetFontIdentification ()
	Gets the parsed font identification data. More...

virtual String	GetRegistry ()
	Gets the CID registry name. More...

abstract int	GetPdfFontFlags ()
	Computes the PDF font descriptor flags for this program. More...

virtual bool	IsFontSpecific ()
	Checks whether this program uses its built-in character encoding. More...

virtual int	GetWidth (int unicode)
	Get glyph's width. More...

virtual int	GetAvgWidth ()
	Gets the average glyph width. More...

virtual int[]	GetCharBBox (int unicode)
	Get glyph's bbox. More...

virtual Glyph	GetGlyph (int unicode)
	Looks up a glyph by Unicode value. More...

virtual Glyph	GetGlyphByCode (int charCode)
	Looks up a glyph by its format-specific code. More...

virtual bool	HasKernPairs ()
	Checks whether this program supplies kerning pairs. More...

virtual int	GetKerning (int first, int second)
	Gets the kerning between two glyphs. More...

abstract int	GetKerning (Glyph first, Glyph second)
	Gets the kerning between two glyphs. More...

virtual bool	IsBuiltWith (String fontName)
	Checks whether the FontProgram was built with corresponding fontName. More...

override String	ToString ()

Static Public Member Functions
static float	ConvertTextSpaceToGlyphSpace (float value)
	Converts a PDF text-space value to normalized glyph space. More...

static float	ConvertGlyphSpaceToTextSpace (float value)
	Converts a normalized glyph-space value to PDF text space. More...

static double	ConvertGlyphSpaceToTextSpace (double value)
	Converts a normalized glyph-space value to PDF text space without losing double precision. More...

static int	ConvertGlyphSpaceToTextSpace (int value)
	Converts an integral normalized glyph-space value to PDF text space. More...

Static Public Attributes
const int	HORIZONTAL_SCALING_FACTOR = 100

const int	DEFAULT_WIDTH = 1000

const int	UNITS_NORMALIZATION = 1000

Package Functions
virtual void	SetRegistry (String registry)
	Sets the CID registry associated with this font program. More...

virtual void	SetTypoAscender (int ascender)
	Sets typo ascender. More...

virtual void	SetTypoDescender (int descender)
	Sets typo descender. More...

virtual void	SetCapHeight (int capHeight)
	Sets the capital letters height. More...

virtual void	SetXHeight (int xHeight)
	Sets the x-height in source font units. More...

virtual void	SetItalicAngle (int italicAngle)
	Sets the PostScript italic angle. More...

virtual void	SetStemV (int stemV)
	Sets the dominant vertical stem width. More...

virtual void	SetStemH (int stemH)
	Sets the dominant horizontal stem width. More...

virtual void	SetFontWeight (int fontWeight)
	Sets font weight. More...

virtual void	SetFontStretch (String fontWidth)
	Sets font width in css notation (font-stretch property) More...

virtual void	SetFixedPitch (bool isFixedPitch)
	Sets whether the font declares a fixed width. More...

virtual void	SetBold (bool isBold)

virtual void	SetBbox (int[] bbox)
	Sets the normalized font bounding box from a four-element coordinate array. More...

virtual void	SetFontFamily (String fontFamily)
	Sets a preferred font family name. More...

virtual void	SetFontName (String fontName)
	Sets the PostScript name of the font. More...

virtual void	FixSpaceIssue ()
	Ensures that an existing Unicode space glyph is also addressable through its font code. More...

Package Attributes
IDictionary< int, Glyph >	codeToGlyph = new DictionaryGlyph>()

IDictionary< int, Glyph >	unicodeToGlyph = new DictionaryGlyph>()

bool	isFontSpecific
	Indicates that character codes are interpreted using the font's built-in encoding rather than a Unicode-oriented encoding. More...

FontNames	fontNames
	Naming data extracted from the font program. More...

FontMetrics	fontMetrics = new FontMetrics()
	Metrics extracted from the font program. More...

FontIdentification	fontIdentification = new FontIdentification()

int	avgWidth
	Average glyph width in normalized glyph units. More...

String	encodingScheme = FontEncoding.FONT_SPECIFIC
	The font's encoding name. More...

String	registry
	CID registry name associated with this font, or `null` for fonts without a CID registry. More...

Detailed Description

Base representation of a font program and its glyph, naming, and metric data.

Glyph metrics exposed by this abstraction use the normalized 1000-unit PDF glyph space.

Member Function Documentation

◆ ConvertGlyphSpaceToTextSpace() [1/3]

static double iText.IO.Font.FontProgram.ConvertGlyphSpaceToTextSpace ( double value )

inlinestatic

Converts a normalized glyph-space value to PDF text space without losing double precision.

Parameters

value value in normalized glyph space

Returns: value multiplied by UNITS_NORMALIZATION

◆ ConvertGlyphSpaceToTextSpace() [2/3]

static float iText.IO.Font.FontProgram.ConvertGlyphSpaceToTextSpace ( float value )

inlinestatic

Converts a normalized glyph-space value to PDF text space.

Parameters

value value in normalized glyph space

Returns: value multiplied by UNITS_NORMALIZATION

◆ ConvertGlyphSpaceToTextSpace() [3/3]

static int iText.IO.Font.FontProgram.ConvertGlyphSpaceToTextSpace ( int value )

inlinestatic

Converts an integral normalized glyph-space value to PDF text space.

Parameters

value value in normalized glyph space

Returns: value multiplied by UNITS_NORMALIZATION

◆ ConvertTextSpaceToGlyphSpace()

static float iText.IO.Font.FontProgram.ConvertTextSpaceToGlyphSpace ( float value )

inlinestatic

Converts a PDF text-space value to normalized glyph space.

Parameters

value value in text space

Returns: value divided by UNITS_NORMALIZATION

◆ CountOfGlyphs()

virtual int iText.IO.Font.FontProgram.CountOfGlyphs ( )

inlinevirtual

Gets the amount of glyphs in this font program.

Returns: the amount of glyphs in this font program

◆ FixSpaceIssue()

virtual void iText.IO.Font.FontProgram.FixSpaceIssue ( )

inlinepackagevirtual

Ensures that an existing Unicode space glyph is also addressable through its font code.

◆ GetAvgWidth()

virtual int iText.IO.Font.FontProgram.GetAvgWidth ( )

inlinevirtual

Gets the average glyph width.

Returns: average width in normalized glyph units

◆ GetCharBBox()

virtual int [] iText.IO.Font.FontProgram.GetCharBBox ( int unicode )

inlinevirtual

Get glyph's bbox.

Parameters

unicode a unicode symbol or FontSpecif code.

Returns: Gets bbox in normalized 1000 units.

◆ GetFontIdentification()

virtual FontIdentification iText.IO.Font.FontProgram.GetFontIdentification ( )

inlinevirtual

Gets the parsed font identification data.

Returns: identification data owned by this program

◆ GetFontMetrics()

virtual FontMetrics iText.IO.Font.FontProgram.GetFontMetrics ( )

inlinevirtual

Gets the parsed font metric data.

Returns: metric data owned by this program

◆ GetFontNames()

virtual FontNames iText.IO.Font.FontProgram.GetFontNames ( )

inlinevirtual

Gets the parsed font naming data.

Returns: naming data owned by this program

◆ GetGlyph()

virtual Glyph iText.IO.Font.FontProgram.GetGlyph ( int unicode )

inlinevirtual

Looks up a glyph by Unicode value.

Parameters

unicode Unicode scalar value

Returns: matching glyph, or null when unmapped

◆ GetGlyphByCode()

virtual Glyph iText.IO.Font.FontProgram.GetGlyphByCode ( int charCode )

inlinevirtual

Looks up a glyph by its format-specific code.

Parameters

charCode Type 1 character code or OpenType glyph index

Returns: matching glyph, or null when absent

◆ GetKerning() [1/2]

abstract int iText.IO.Font.FontProgram.GetKerning	(	Glyph	first,
		Glyph	second
	)

pure virtual

Gets the kerning between two glyphs.

Parameters

first	the first glyph
second	the second glyph

Returns: the kerning to be applied

Implemented in iText.Kernel.Font.Type3Font, iText.IO.Font.CidFont, iText.IO.Font.Type1Font, and iText.IO.Font.TrueTypeFont.

◆ GetKerning() [2/2]

virtual int iText.IO.Font.FontProgram.GetKerning	(	int	first,
		int	second
	)

inlinevirtual

Gets the kerning between two glyphs.

Parameters

first	the first unicode value
second	the second unicode value

Returns: the kerning to be applied

◆ GetPdfFontFlags()

abstract int iText.IO.Font.FontProgram.GetPdfFontFlags ( )

pure virtual

Computes the PDF font descriptor flags for this program.

Returns: bit set defined by the PDF font descriptor specification

Implemented in iText.IO.Font.Type1Font, iText.IO.Font.TrueTypeFont, iText.Kernel.Font.Type3Font, and iText.IO.Font.CidFont.

◆ GetRegistry()

virtual String iText.IO.Font.FontProgram.GetRegistry ( )

inlinevirtual

Gets the CID registry name.

Returns: CID registry, or null when none was supplied

◆ GetWidth()

virtual int iText.IO.Font.FontProgram.GetWidth ( int unicode )

inlinevirtual

Get glyph's width.

Parameters

unicode a unicode symbol or FontSpecif code.

Returns: Gets width in normalized 1000 units.

◆ HasKernPairs()

virtual bool iText.IO.Font.FontProgram.HasKernPairs ( )

inlinevirtual

Checks whether this program supplies kerning pairs.

Returns

true if supplies, false otherwise

Reimplemented in iText.IO.Font.Type1Font, and iText.IO.Font.TrueTypeFont.

◆ IsBuiltWith()

virtual bool iText.IO.Font.FontProgram.IsBuiltWith ( String fontName )

inlinevirtual

Checks whether the FontProgram was built with corresponding fontName.

Checks whether the FontProgram was built with corresponding fontName. Default value is false unless overridden.

Parameters

fontName a font name or path to a font program

Returns: true, if the FontProgram was built with the fontProgram. Otherwise false.

Reimplemented in iText.IO.Font.TrueTypeFont, iText.IO.Font.Type1Font, iText.Kernel.Font.DocTrueTypeFont, and iText.IO.Font.CidFont.

◆ IsFontSpecific()

virtual bool iText.IO.Font.FontProgram.IsFontSpecific ( )

inlinevirtual

Checks whether this program uses its built-in character encoding.

Returns

true when character codes are font-specific

Reimplemented in iText.Kernel.Font.Type3Font, and iText.IO.Font.CidFont.

◆ SetBbox()

virtual void iText.IO.Font.FontProgram.SetBbox ( int[] bbox )

inlinepackagevirtual

Sets the normalized font bounding box from a four-element coordinate array.

Parameters

bbox	lower-left x/y and upper-right x/y coordinates

◆ SetCapHeight()

virtual void iText.IO.Font.FontProgram.SetCapHeight ( int capHeight )

inlinepackagevirtual

Sets the capital letters height.

Sets the capital letters height. See also FontMetrics.SetCapHeight(int).

Parameters

capHeight cap height in 1000-units

Reimplemented in iText.Kernel.Font.Type3Font.

◆ SetFixedPitch()

virtual void iText.IO.Font.FontProgram.SetFixedPitch ( bool isFixedPitch )

inlinepackagevirtual

Sets whether the font declares a fixed width.

Parameters

isFixedPitch

true for a monospaced font

◆ SetFontFamily()

virtual void iText.IO.Font.FontProgram.SetFontFamily ( String fontFamily )

inlinepackagevirtual

Sets a preferred font family name.

Parameters

fontFamily a preferred font family name.

Reimplemented in iText.Kernel.Font.Type3Font.

◆ SetFontName()

virtual void iText.IO.Font.FontProgram.SetFontName ( String fontName )

inlinepackagevirtual

Sets the PostScript name of the font.

If full name is null, it will be set as well.

Parameters

fontName the PostScript name of the font, shall not be null or empty.

Reimplemented in iText.Kernel.Font.Type3Font.

◆ SetFontStretch()

virtual void iText.IO.Font.FontProgram.SetFontStretch ( String fontWidth )

inlinepackagevirtual

Sets font width in css notation (font-stretch property)

Parameters

fontWidth

iText.IO.Font.Constants.FontStretches.

Reimplemented in iText.Kernel.Font.Type3Font.

◆ SetFontWeight()

virtual void iText.IO.Font.FontProgram.SetFontWeight ( int fontWeight )

inlinepackagevirtual

Sets font weight.

Parameters

fontWeight integer form 100 to 900. See iText.IO.Font.Constants.FontWeights.

Reimplemented in iText.Kernel.Font.Type3Font.

◆ SetItalicAngle()

virtual void iText.IO.Font.FontProgram.SetItalicAngle ( int italicAngle )

inlinepackagevirtual

Sets the PostScript italic angle.

Italic angle in counterclockwise degrees from the vertical. Zero for upright text, negative for text that leans to the right (forward).

Parameters

italicAngle in counterclockwise degrees from the vertical

Reimplemented in iText.Kernel.Font.Type3Font.

◆ SetRegistry()

virtual void iText.IO.Font.FontProgram.SetRegistry ( String registry )

inlinepackagevirtual

Sets the CID registry associated with this font program.

Parameters

registry CID registry name, or null when unavailable

◆ SetStemH()

virtual void iText.IO.Font.FontProgram.SetStemH ( int stemH )

inlinepackagevirtual

Sets the dominant horizontal stem width.

Parameters

stemH Type 1/CFF StdHW value in glyph units

◆ SetStemV()

virtual void iText.IO.Font.FontProgram.SetStemV ( int stemV )

inlinepackagevirtual

Sets the dominant vertical stem width.

Parameters

stemV Type 1/CFF StdVW value in glyph units

◆ SetTypoAscender()

virtual void iText.IO.Font.FontProgram.SetTypoAscender ( int ascender )

inlinepackagevirtual

Sets typo ascender.

Sets typo ascender. See also FontMetrics.SetTypoAscender(int).

Parameters

ascender typo ascender value in 1000-units

Reimplemented in iText.Kernel.Font.Type3Font.

◆ SetTypoDescender()

virtual void iText.IO.Font.FontProgram.SetTypoDescender ( int descender )

inlinepackagevirtual

Sets typo descender.

Sets typo descender. See also FontMetrics.SetTypoDescender(int).

Parameters

descender typo descender value in 1000-units

Reimplemented in iText.Kernel.Font.Type3Font.

◆ SetXHeight()

virtual void iText.IO.Font.FontProgram.SetXHeight ( int xHeight )

inlinepackagevirtual

Sets the x-height in source font units.

Parameters

xHeight height of lowercase flat characters above the baseline

Member Data Documentation

◆ avgWidth

int iText.IO.Font.FontProgram.avgWidth

package

Average glyph width in normalized glyph units.

◆ encodingScheme

String iText.IO.Font.FontProgram.encodingScheme = FontEncoding.FONT_SPECIFIC

package

The font's encoding name.

The font's encoding name. This encoding is 'StandardEncoding' or 'AdobeStandardEncoding' for a font that can be totally encoded according to the characters names. For all other names the font is treated as symbolic.

◆ fontMetrics

FontMetrics iText.IO.Font.FontProgram.fontMetrics = new FontMetrics()

package

Metrics extracted from the font program.

◆ fontNames

FontNames iText.IO.Font.FontProgram.fontNames

package

Naming data extracted from the font program.

◆ isFontSpecific

bool iText.IO.Font.FontProgram.isFontSpecific

package

Indicates that character codes are interpreted using the font's built-in encoding rather than a Unicode-oriented encoding.

◆ registry

String iText.IO.Font.FontProgram.registry

package

CID registry name associated with this font, or null for fonts without a CID registry.

Public Member Functions

Static Public Member Functions

Static Public Attributes

Package Functions

Package Attributes

Detailed Description

Member Function Documentation

◆ ConvertGlyphSpaceToTextSpace() [1/3]

◆ ConvertGlyphSpaceToTextSpace() [2/3]

◆ ConvertGlyphSpaceToTextSpace() [3/3]

◆ ConvertTextSpaceToGlyphSpace()

◆ CountOfGlyphs()

◆ FixSpaceIssue()

◆ GetAvgWidth()

◆ GetCharBBox()

◆ GetFontIdentification()

◆ GetFontMetrics()

◆ GetFontNames()

◆ GetGlyph()

◆ GetGlyphByCode()

◆ GetKerning() [1/2]

◆ GetKerning() [2/2]

◆ GetPdfFontFlags()

◆ GetRegistry()

◆ GetWidth()

◆ HasKernPairs()

◆ IsBuiltWith()

◆ IsFontSpecific()

◆ SetBbox()

◆ SetCapHeight()

◆ SetFixedPitch()

◆ SetFontFamily()

◆ SetFontName()

◆ SetFontStretch()

◆ SetFontWeight()

◆ SetItalicAngle()

◆ SetRegistry()

◆ SetStemH()

◆ SetStemV()

◆ SetTypoAscender()

◆ SetTypoDescender()

◆ SetXHeight()

Member Data Documentation

◆ avgWidth

◆ encodingScheme

◆ fontMetrics

◆ fontNames

◆ isFontSpecific

◆ registry
