A field that represents a control for selecting one or several of the provided options. More...

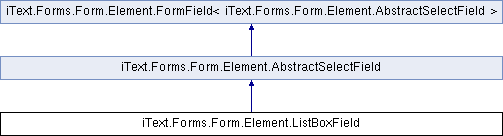

Inheritance diagram for iText.Forms.Form.Element.ListBoxField:

Public Member Functions
	ListBoxField (String id, int size, bool allowMultipleSelection)
	Create a new list box field. More...

override T1	GetDefaultProperty< T1 > (int property)

virtual iText.Forms.Form.Element.ListBoxField	AddOption (String option)
	Add an option for ListBoxField. More...

virtual iText.Forms.Form.Element.ListBoxField	AddOption (String option, bool selected)
	Add an option for ListBoxField. More...

virtual IList< String >	GetSelectedStrings ()
	Get a list of selected options. More...

virtual iText.Forms.Form.Element.ListBoxField	SetTopIndex (int topIndex)
	Sets the index of the first visible option in a scrollable list. More...

override AccessibilityProperties	GetAccessibilityProperties ()
	Gets the accessibility properties. More...

Public Member Functions inherited from iText.Forms.Form.Element.AbstractSelectField
virtual void	AddOption (SelectFieldItem option)
	Add an option to the element. More...

virtual void	AddOption (SelectFieldItem option, bool selected)
	Add an option to the element. More...

virtual IList< SelectFieldItem >	GetOptions ()
	Get a list of SelectFieldItem. More...

virtual int	OptionsCount ()
	Gets the total amount of options available. More...

virtual bool	HasOptions ()
	Checks if the element has any options. More...

virtual SelectFieldItem	GetOption (String value)
	Get an option SelectFieldItem by its string value. More...

virtual bool	HasExportAndDisplayValues ()
	Checks if the field has options with export and display values. More...

Public Member Functions inherited from iText.Forms.Form.Element.FormField< iText.Forms.Form.Element.AbstractSelectField >
virtual T	SetSize (float size)
	Sets the form field's width and height. More...

virtual IFormField	SetWidth (float width)

virtual IFormField	SetHeight (float height)

virtual IFormField	SetValue (String value)

virtual String	GetId ()

override T1	GetDefaultProperty< T1 > (int property)

virtual IFormField	SetInteractive (bool interactive)

virtual IFormField	SetAlternativeDescription (String alternativeDescription)
	Sets the form field's alternative description. More...

Protected Member Functions
override IRenderer	MakeNewRenderer ()

Additional Inherited Members
Package Functions inherited from iText.Forms.Form.Element.AbstractSelectField
	AbstractSelectField (String id)
	Instantiates a new AbstractSelectField instance. More...

Package Attributes inherited from iText.Forms.Form.Element.AbstractSelectField
IList< SelectFieldItem >	options = new List<SelectFieldItem>()

Package Attributes inherited from iText.Forms.Form.Element.FormField< iText.Forms.Form.Element.AbstractSelectField >
DefaultAccessibilityProperties	tagProperties
	The tag properties. More...

Detailed Description

A field that represents a control for selecting one or several of the provided options.

Constructor & Destructor Documentation

◆ ListBoxField()

iText.Forms.Form.Element.ListBoxField.ListBoxField	(	String	id,
		int	size,
		bool	allowMultipleSelection
	)

inline

Create a new list box field.

Parameters

size	the size of the list box, which will define the height of visible properties, shall be greater than zero
allowMultipleSelection	a boolean flag that defines whether multiple options are allowed to be selected at once
id	the id

Member Function Documentation

◆ AddOption() [1/2]

virtual iText.Forms.Form.Element.ListBoxField iText.Forms.Form.Element.ListBoxField.AddOption ( String option )

inlinevirtual

Add an option for ListBoxField.

Add an option for ListBoxField . The option is not selected.

Parameters

option string representation of the option.

Returns: this ListBoxField.

◆ AddOption() [2/2]

virtual iText.Forms.Form.Element.ListBoxField iText.Forms.Form.Element.ListBoxField.AddOption	(	String	option,
		bool	selected
	)

inlinevirtual

Add an option for ListBoxField.

Parameters

option	string representation of the option.
selected

true is the option if selected, false otherwise.

Returns: this ListBoxField.

◆ GetAccessibilityProperties()

override AccessibilityProperties iText.Forms.Form.Element.ListBoxField.GetAccessibilityProperties ( )

inlinevirtual

Gets the accessibility properties.

Implements iText.Forms.Form.Element.FormField< iText.Forms.Form.Element.AbstractSelectField >.

◆ GetSelectedStrings()

virtual IList iText.Forms.Form.Element.ListBoxField.GetSelectedStrings ( )

inlinevirtual

Get a list of selected options.

Returns: a list of display values of selected options.

◆ SetTopIndex()

virtual iText.Forms.Form.Element.ListBoxField iText.Forms.Form.Element.ListBoxField.SetTopIndex ( int topIndex )

inlinevirtual

Sets the index of the first visible option in a scrollable list.

Parameters

topIndex the index of the first option

Returns: this ListBoxField instance
